Stainless Steel G411 Wire Rope Thimble 1/8in

Brand Name : LKY

Model Number : G411 Wire Rope Thimble

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1 ton

Price : Negotiable

Payment Terms : T/T

Supply Ability : 200 tons per month

Delivery Time : 60 days

Packaging Details : Carton + Pallet

Product Name : Stainless Steel G411 Wire Rope Thimble

Material : Stainless Steel

Surface : Polished

Size : 1/8 - 1-1/4"

Usage : Wire rope fittings, chain fittings, marine hardware fittings

Packing : Cartong + Pallet

Contact Now

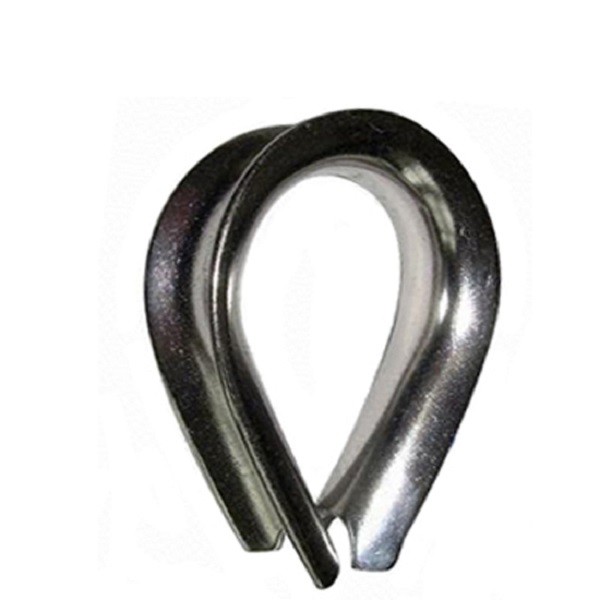

Stainless Steel G411 Wire Rope Thimble

Our company is a professional wire rope thimble manufacturer, supplier and exporter in China. Various size is available. We are looking forward to being your business partner.

Details:

1. Model: G411 Wire Rope Thimble
2. Material: Stainless steel
3. Usage: Wire rope fittings, chain fittings, marine hardware fittings
4. Surface Treatment: Galvanized, hot dipped galvanized
5. Size: Different sizes are available
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements

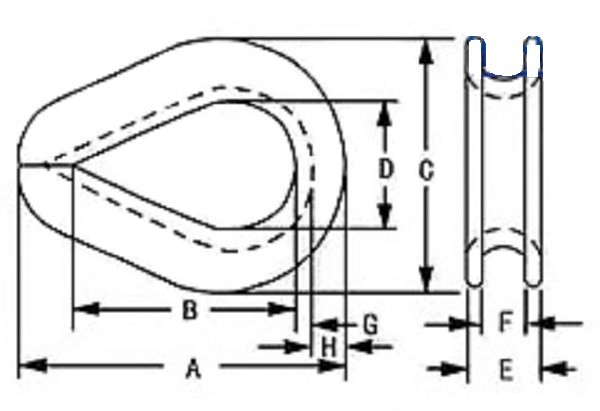

Specification:

Rope dia	Dimensions(in)								Weight 100PCS(LBS)
in	A	B	C	D	E	F	G	H	Weight 100PCS(LBS)
1/8	1.94	1.31	1.06	0.69	0.25	0.16	0.05	0.13	2.50
3/16	1.94	1.31	1.06	0.69	0.31	0.22	0.05	0.13	2.50
1/4	1.94	1.31	1.06	0.69	0.38	0.28	0.05	0.13	3.75
5/16	2.13	1.50	1.25	0.81	0.44	0.34	0.05	0.13	3.75
3/8	2.38	1.63	1.47	0.94	0.53	0.41	0.06	0.16	6.25
1/2	2.75	1.88	1.75	1.13	0.69	0.53	0.08	0.19	12.50
5/8	3.50	2.50	2.38	1.38	0.91	0.66	0.13	0.34	25.00
3/4	3.75	2.50	2.69	1.63	1.08	0.78	0.14	0.34	50.00
7/8	5.00	3.50	3.19	1.88	1.27	0.94	0.16	0.44	85.00
1	5.69	4.25	3.75	2.50	1.39	1.06	0.16	0.41	100.00
1-1/8-1-1/4	6.25	4.25	4.31	2.75	1.75	1.31	0.22	0.50	175.00
