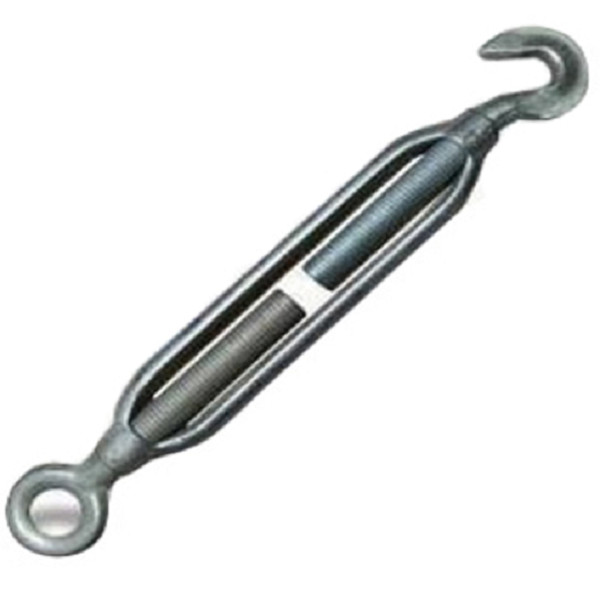

JIS Frame Type Steel Cable Galvanised Turnbuckle M6 - M24

Brand Name : LKY

Model Number : JIS Frame Type Turnbuckles

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1 ton

Price : Negotiable

Payment Terms : T/T

Supply Ability : 200 tons per month

Delivery Time : 60 days

Packaging Details : Carton + Pallet

Product Name : JIS Frame Type Turnbuckles

Material : Carbon Steel

Surface : Galvanized, Self Color

Size : M6 - M24

Weight : 0.116 - 3.8 kg

Packing : Cartong + Pallet

Contact Now

Galvanized / Self Color Carbon Steel JIS Frame Type Turnbuckles

JIS Frame Type Turnbuckles

Turnbuckle is a kind of hardware, which is used to adjust the connection length of connetion objects.It is used to taut wire rope and adjust the elasitc. The type of OO model is used in the occasion that less often been removed. CC type often used to been removed, and CO type used for the occasion that one side is often been removed while the other side is not. And you should make sure that at least 25% of the length of screw has enter into the body of JIS frame type turnbuckles when you use it.

Product details:

1. Item: JIS frame type turnbuckle

2. Standard: JIS type

3. Material: carbon steel, stainless steel

4. Type: hook&hook, eye &hook, eye&eye,

5. Technology: forged

6. Surface: hot dipped galv, electro galv, polish, self color

7. Size: 6mm-32mm

8. Usage: chain and wire rope accessories

9. Special specification and marks can be made according to customers requirement

Specification:

SIZE (mm)	weight(kg/pc)
SIZE (mm)	body	eye&eye	hook&eye	hook&hook
6	0.08	0.116	0.114	0.112
8	0.15	0.22	0.218	0.215
9	0.17	0.3	0.293	0.29
12	0.29	0.58	0.585	0.57
16	0.52	1.07	1.05	1.03
19	0.85	1.77	1.78	1.77
22	1.17	2.55	2.58	2.6
25	1.69	3.79	3.77	3.72
32	3.51	7.6	7.52	7.44
38	5.08	13.5	12.8	22
44	9	—	—	22
50	11.5	—	—	29
