JIS Type Dee Screw Pin Anchor Shackle With Pin Zinc Painted

Brand Name : LKY

Model Number : Dee Shackle

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1 ton

Price : Negotiable

Payment Terms : T/T

Supply Ability : 200 tons per month

Delivery Time : 60 days

Packaging Details : Carton + Pallet

Product Name : Galvanized JIS Type Dee Shackle with Safety Pin

Material : Carbon steel

Surface : Electric galvanized, hot dipped galvanized, painted

Size : M6 - M32

Packing : Cartong + Pallet

WLL : 0.12 - 3.2 tons

Contact Now

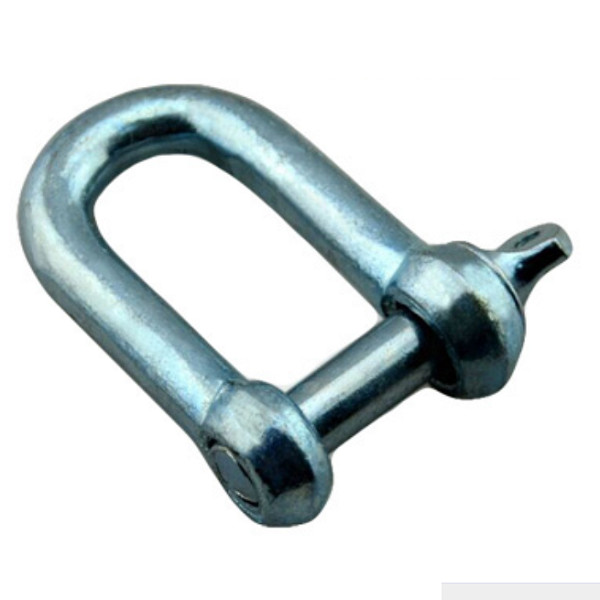

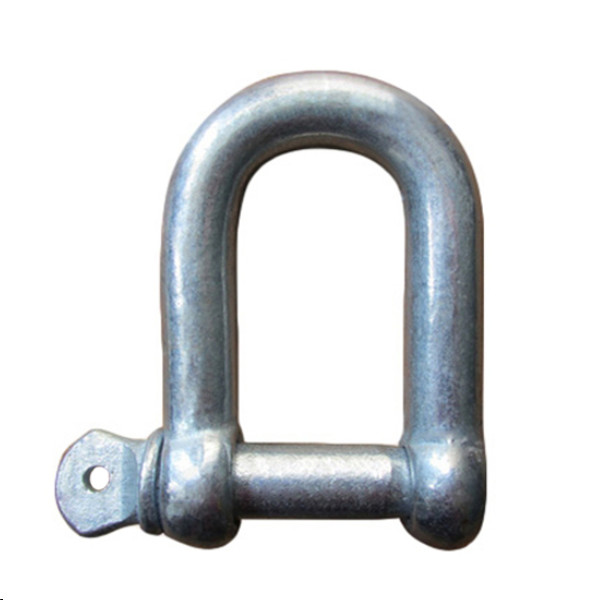

Galvanized JIS Type Dee Shackle with Safety Pin

JIS type dee shackles with safety pin are very essential in marine hardware. Our company have been specialized in producing this product for several years, so all the sizes are available. The price is very competive. And all of them have required relative society certification. Welcome to contact with us at any time for further information.

Details:

1. Type: JIS type
2. Material: Carbon steel
3. Usage: Marine hardware, electric power, machinery, metallurgy
4. Surface Treatment: Electric galvanized, hot dipped galvanized
5. Size: Different size as your requirement
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements

Specification:

Body diameter	In fact diameter bow	in fact diameter pin	Working load limit
mm	mm	mm	ton
6	5.5	5.5	0.12
8	7.3	7.5	0.23
9	8.5	9	0.3
12	12	12	0.45
16	16	15.5	0.8
19	18.5	19	1
22	21.5	21.5	1.5
25	24	24.5	2
28	26.5	28	2.5
32	30.5	32	3.2

JIS Type Dee Screw Pin Anchor Shackle With Pin Zinc Painted

Packing & Delivery

JIS Type Dee Screw Pin Anchor Shackle With Pin Zinc Painted
