Electric galvanized Screw Pin Anchor Shackle Drop Forged Bolt Type Chain Shackle 85T

Brand Name : LKY

Model Number : Chain Shackle

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1 ton

Price : Negotiable

Payment Terms : T/T

Supply Ability : 200 tons per month

Delivery Time : 60 days

Packaging Details : Carton + Pallet

Product Name : Drop Forged Bolt Type Chain Shackle

Material : Alloy steel

Surface : Electric galvanized, hot dipped galvanized, painted

Size : 1/4" - 3 ''

Packing : Cartong + Pallet

WLL : 1/2 - 85 tons

Contact Now

Electric galvanized Drop Forged Bolt Type Chain Shackle

Galvanized drop forged bolt type chain shackle also known as a D-shackle. D-shackles are narrow shackles shaped like a loop of chain, usually with a pin or threaded pin closure. The breaking load is 6 times of working load limited. Because of its galvanized surface, it can serve in many circumstances.

Details:

1. Model: Galvanized drop forged bolt type chain shackle
2. Material: Alloy steel
3. Usage: Marine hardware, electric power, machinery, metallurgy, building
4. Surface Treatment: Electric galvanized, hot dipped galvanized, painted
5. Size: From 1/4 inch to 3 inch
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements

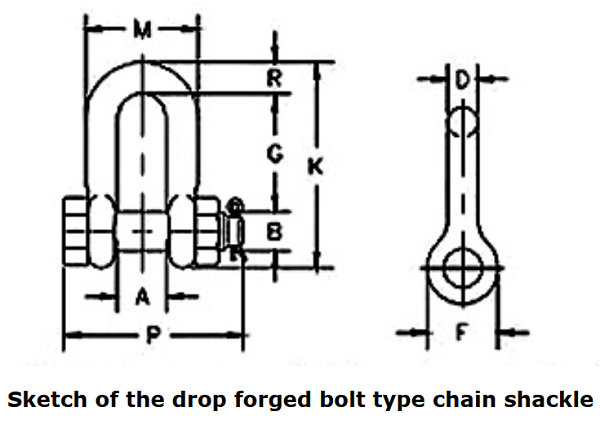

Specification:

Nominal size	Weight each	Working load limit	Dimensions(mm)
in	kg	tons	A	B	C	D	E	F	G	H	L	M	P
1/4	0.05	1/2	11.90	7.85	28.7	6.35	19.8	15.5	19.05	46.7	32.5	15.49	39.62
5/16	0.10	3/4	13.50	9.65	31.0	7.85	21.3	19.1	25.40	53.0	37.3	19.05	46.23
3/8	0.15	1	16.80	11.20	36.6	9.65	26.2	23.1	30.99	63.0	45.2	23.11	55.12
7/16	0.22	1-1/2	19.10	12.70	42.9	11.20	29.5	26.9	36.09	74.0	51.5	41.15	63.75
1/2	0.36	2	20.60	16.00	47.8	12.70	33.3	30.2	41.04	83.5	58.5	45.97	71.12
5/8	0.76	3-1/4	26.90	19.10	60.5	16.00	42.9	38.1	50.80	106.0	74.5	58.67	89.66
3/4	1.23	4-3/4	31.80	22.40	71.5	19.10	51.0	46.0	60.45	126.0	89.0	69.85	103.38
7/8	1.79	6-1/2	36.60	25.40	84.0	22.40	58.0	53.0	71.37	148.0	102.0	81.03	119.63
1	2.57	8-1/2	42.90	28.70	95.5	25.40	68.5	60.5	81.03	167.0	119.0	93.73	134.87
1-1/8	3.75	9-1/2	46.00	31.80	108.0	28.70	74.0	68.5	90.93	190.0	131.0	103.12	149.86
1-1/4	5.31	12	51.50	35.10	119.0	31.80	82.5	76.0	100.08	210.0	146.0	115.06	165.35
1-3/8	7.18	13-1/2	57.00	38.10	133.0	35.10	92.0	84.0	111.25	233.0	162.0	127.00	183.13
1-1/2	9.43	17	60.50	41.40	146.0	38.10	98.5	92.0	122.17	254.0	175.0	136.05	196.34
1-3/4	15.40	25	73.00	51.00	178.0	44.50	127.0	106.0	146.05	313.0	225.0	162.05	229.87
2	23.70	35	82.50	57.00	197.0	51.00	146.0	122.0	171.45	348.0	253.0	184.15	264.41
2-1/2	44.60	55	105.00	70.00	267.0	66.50	184.0	145.0	203.20	453.0	327.0	238.25	344.42
3	70.00	85	127.00	82.50	330.0	76.00	200.0	165.0	215.90	546.0	365.0	279.40	419.10
