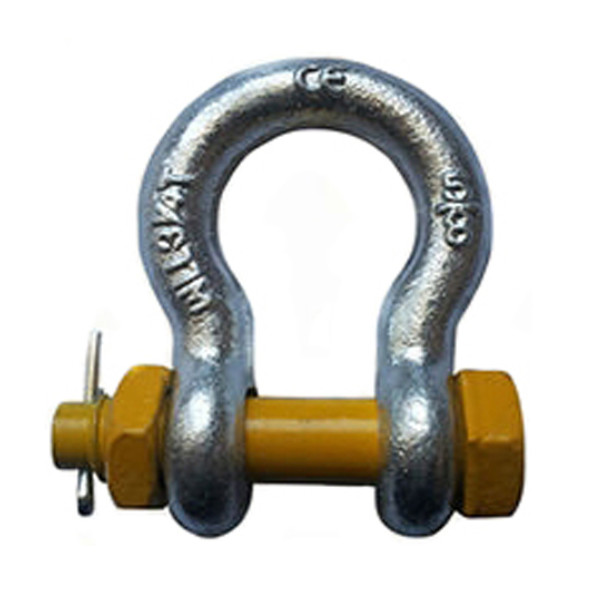

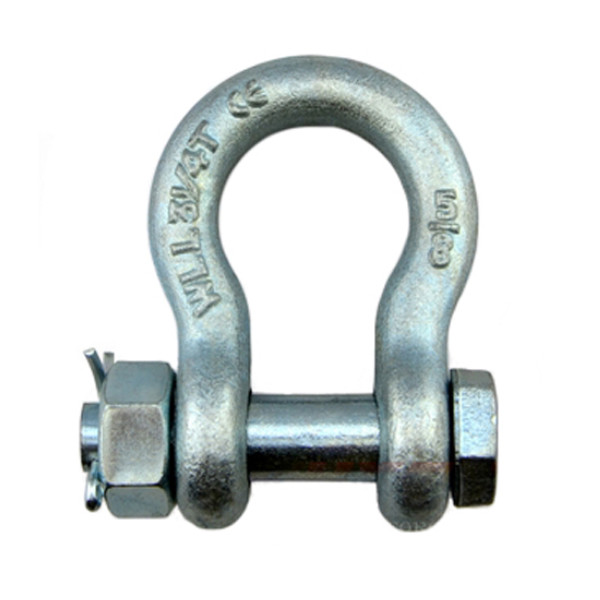

Galvanized Safety Screw Pin Anchor Shackle G2130 Bolt Type

Brand Name : LKY

Model Number : G2130

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1 ton

Price : Negotiable

Payment Terms : T/T

Supply Ability : 200 tons per month

Delivery Time : 60 days

Packaging Details : Carton + Pallet

Product Name : Galvanized Bolt Type Safety Anchor Shackle G2130

Material : Carbon steel, Alloy steel, Stainless steel

Surface : lectric galvanized, hot dipped galvanized

Size : From 3/16 inch to 2-1/2 inch

Packing : Cartong + Pallet

WLL : 1/3- 55 tons

Contact Now

Galvanized Bolt Type Safety Anchor Shackle G2130

Bolt type safety anchor shackles G2130 are neccessary for marine equipment. Our company has stimulated lots of experiences in producing this product. And we also have a professional sales team and they can provide you with the best service. We are looking forward to cooperating with you.

Details:

1. Model: Bolt Type Safety Anchor Shackle G2130
2. Material: Carbon steel, Alloy steel, Stainless steel
3. Usage: Marine hardware, electric power, machinery, metallurgy
4. Surface Treatment: Electric galvanized, hot dipped galvanized
5. Size: From 3/16 inch to 2-1/2 inch
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:

Nominal size	Working load limit	Dimensions(in)									Weight each(lbs)
in	tons	A	B	C	D	E	F	H	L	N	G2130
3/16	1/3	0.38	0.25	0.88	0.19	0.6	0.56	1.47	0.98	0.19	0.06
1/4	1/2	0.47	0.31	1.13	0.25	0.78	0.61	1.84	1.28	0.25	0.11
5/16	3/4	0.53	0.38	1.22	0.31	0.84	0.75	2.09	1.47	0.31	0.22
3/8	1	0.66	0.44	1.44	0.38	1.03	0.91	2.49	1.78	0.38	0.33
7/16	1-1/2	0.75	0.5	1.69	0.44	1.16	1.06	2.91	2.03	0.44	0.49
1/2	2	0.81	0.64	1.88	0.5	1.31	1.19	3.28	2.31	0.5	0.79
5/8	3-1/4	1.06	0.77	2.38	0.63	1.69	1.5	4.19	2.94	0.69	1.68
3/4	4-3/4	1.25	0.89	2.81	0.75	2	1.81	4.97	3.5	0.81	2.72
7/8	6-1/2	1.44	1.02	3.31	0.88	2.28	2.09	5.83	4.03	0.97	3.95
1	8-1/2	1.69	1.15	3.75	1	2.69	2.38	6.56	4.69	1.06	5.66
1-1/8	9-1/2	1.81	1.25	4.25	1.13	2.91	2.69	7.47	5.16	1.25	8.27
1-1/4	12	2.03	1.4	4.69	1.29	3.25	3	8.25	5.75	1.38	11.71
1-3/8	13-1/2	2.25	1.53	5.25	1.42	3.63	3.31	9.16	6.38	1.5	15.83
1-1/2	17	2.38	1.66	5.75	1.53	3.88	3.63	10	6.88	1.62	19
1-3/4	25	2.88	2.04	7	1.84	5	4.19	12.34	8.8	2.25	33.91
2	35	3.25	2.3	7.75	2.08	5.75	4.81	13.68	10.15	2.4	52.25
2-1/2	55	4.13	2.8	10.5	2.71	7.25	5.69	17.9	12.75	3.13	98.25
