Trawling Screw Pin Anchor Shackle With Square

Brand Name : LKY

Model Number : Trawling Shackle

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1 ton

Price : Negotiable

Payment Terms : T/T

Supply Ability : 200 tons per month

Delivery Time : 60 days

Packaging Details : Carton + Pallet

Product Name : Forged Steel Trawling Shackle with Square Head Pin

Material : Forged steel

Surface : Electric galvanized, hot dipped galvanized, self-colored

Size : M13 - M51

Packing : Cartong + Pallet

WLL : 2- 35 tons

Contact Now

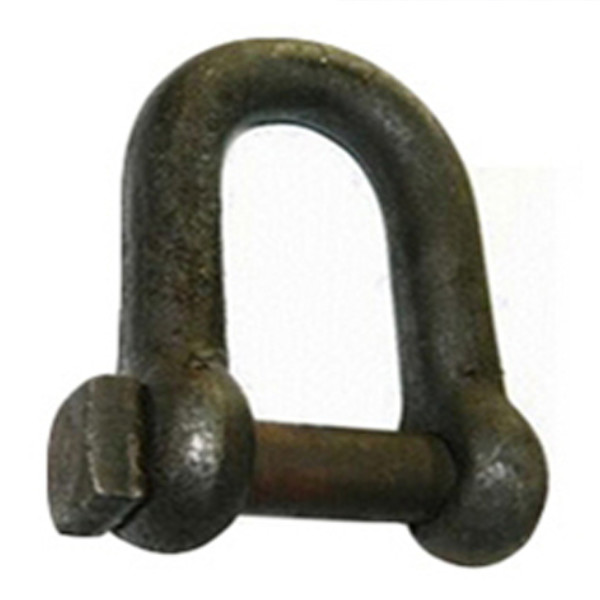

Forged Steel Trawling Shackle with Square Head Pin

Forged steel trawling shackle with square head pin is one of our company's important products. All sizes are available. The price is very competitive. Welcome to get in touch with us.

Details:

1. Model: Trawling shackle with square head pin
2. Material: Forged steel
3. Usage: Marine hardware, electric power, machinery, metallurgy
4. Surface Treatment: Electric galvanized, hot dipped galvanized, self-colored
5. Size: Different sizes are available
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS
9. Notes: Special specifications and marks can be made according to customers requirements

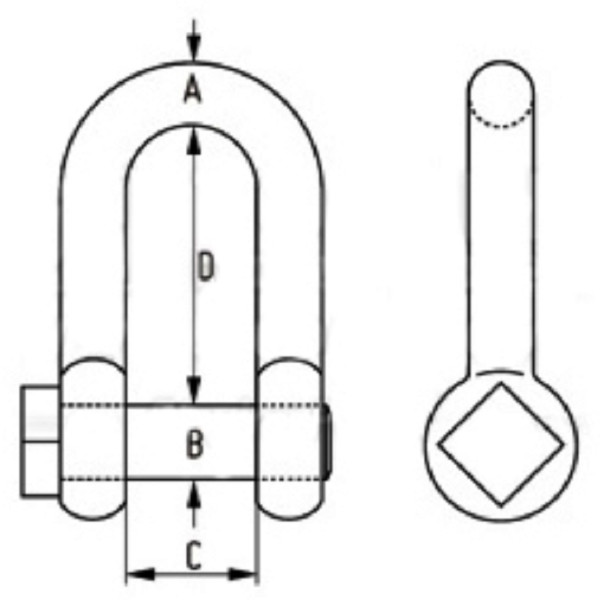

Specification:

Size	Dimensions(mm)				W.L.L.	Weight
mm	A	B	C	D	tons	kgs
13	13	15.7	22	43.7	2.00	0.35
16	16	19	27	51.5	3.25	0.61
19	19	21.7	31	59.7	4.75	0.95
22	22	24.7	36	74.2	6.50	1.35
25	25	27.7	43	86.2	8.50	2.00
29	29	32	47	90	9.50	3.08
32	32	35	51	94	12.00	4.34
35	35	38	57	115	13.50	5.69
38	38	42	60	127	17.00	7.10
44	44	51	74	149	25.00	12.15
51	51	57	83	171	35.00	17.28
