M5 Screw Pin Anchor Shackle Din 82101 Shackle

Brand Name : LKY

Model Number : DIN82101

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1 ton

Price : Negotiable

Payment Terms : T/T

Supply Ability : 200 tons per month

Delivery Time : 60 days

Packaging Details : Carton + Pallet

Product Name : Galvanized DIN82101 Shackles

Material : High carbon steel

Surface : Electric galvanized, hot dipped galvanized, self-colored

Size : M5 - M39

Packing : Cartong + Pallet

WLL : 0.1- 6 tons

Contact Now

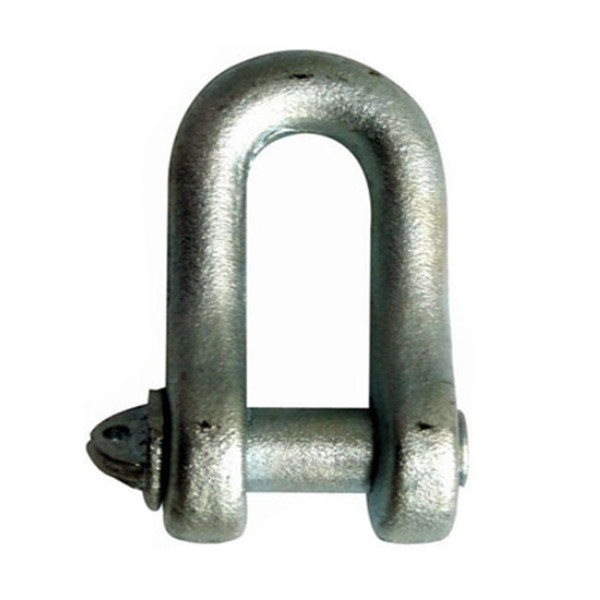

Galvanized DIN82101 Shackles

DIN82101 shackles are neccessary for marine equipment. Our company has stimulated lots of experiences in producing this product. And we also have a professional sales team and they can offer you the best service. We are looking forward to cooperating with you.

Details:

1. Model: DIN82101 Shackle
2. Material: High carbon steel
3. Usage: Marine hardware, electric power, machinery, metallurgy
4. Surface Treatment: Electric galvanized, hot dipped galvanized, drop forged
5. Size: Different sizes are available
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS
9. Notes: Special specifications and marks can be made according to customers requirements

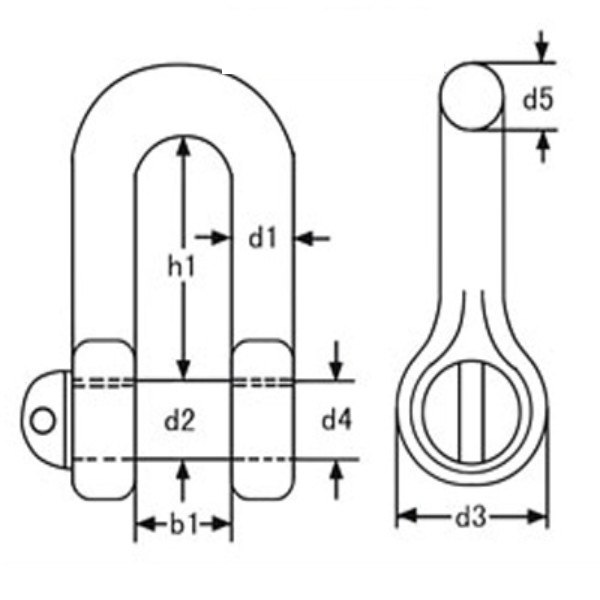

Specification:

Size	W.L.L	Body dia	I.L.	N.W.
mm	ton	mm	mm	kg
5	0.1	4	18	0.013
6	0.16	5	21	0.024
8	0.25	7	28	0.045
10	0.4	8	35	0.09
12	0.6	10	42	0.17
16	1	13	57	0.36
20	1.6	17	71	0.75
22	2	19	78	1
24	2.5	21	85	1.32
27	3	24	97	1.85
30	4	27	106	2.5
36	5	30	129	4
39	6	34	139	5.4

M5 Screw Pin Anchor Shackle Din 82101 Shackle
